UHF Readers

A UHF (Ultra-High Frequency) RFID reader is a device that utilizes radio waves (usually in the range of 860–960 MHz) to read and write data to passive tags from distances of up to 15 meters. These readers facilitate high-speed, long-range, and simultaneous identification of multiple tags, which makes them suitable for applications such as inventory management, supply chain, asset tracking, and vehicle access control.

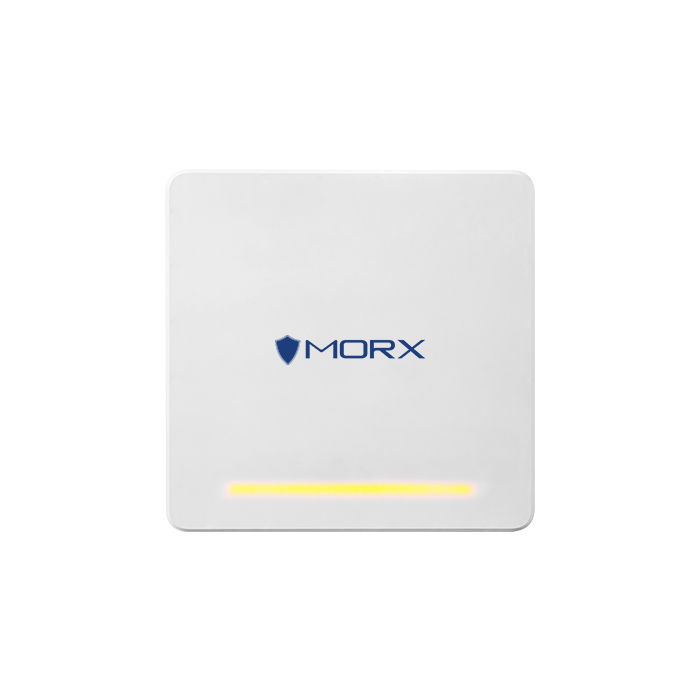

HR18 UHF

MORX UHF

HR18 UHF

MORX UHF

Features: HR18 UHF Integrated Reader achieves beyond-expected tag reading performance to meet various application scenarios Rich communication interfaces (Ethernet, RS232, Wiegand, etc.) The built-in buzzer can be set as the tag reading prompt sound Support online upgrade Support RSSI and tag data filtering Support custom data output format Description: Logistics industry such as, warehouse management, cargo transfer tracking, etc. Intelligent vehicle management e.g. vehicle inspection, customs clearance, etc. Anti-forgery identification. Production automation, parts flow management, etc. E-ticketing and identification of personnel cards, etc. Asset access management, etc.

Phone:+91 7095 49 5929
Email:ranjith@smarteyetechnologies.in

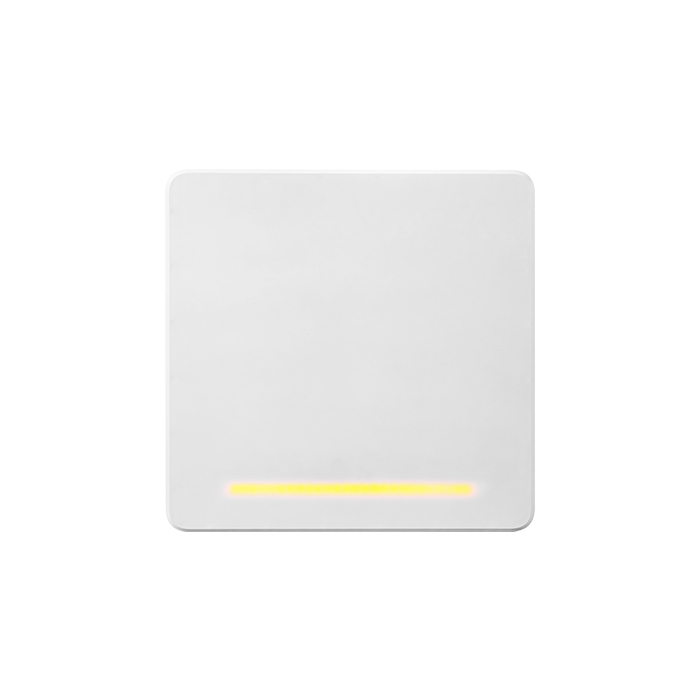

MORX HR15T

MORX UHF

MORX HR15T

MORX UHF

UHF Integrated Reader for Toll Tax Powered by Impinj RAIN RFID with reading range up to 15 mtr Communication interfaces: RJ45, RS232, RS485, WG26/WG34/WG66, GPIO Operating Voltage DC 24V/2.5A power adapter Industrial, installation-friendly I/O connector. EPC+TID+User memory for FastTag Application

Phone:+91 7095 49 5929
Email:ranjith@smarteyetechnologies.in

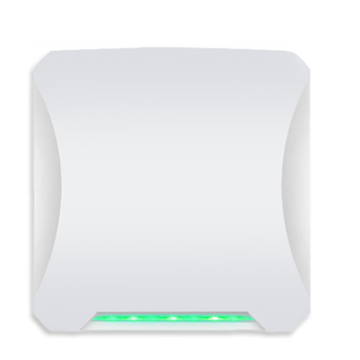

MORX CR06/CR15/CR20

MORX UHF

MORX CR06/CR15/CR20

MORX UHF

Long Range Reader with TCP/IP and Relay RF power 0-33dBm (power software adjustable) Antenna parameters 9dBi linear polarization antenna (built-in) Communication Interface: RS232, WG26/WG34, TCP/IP, RS 485 Operating Voltage DC 12V 2A power adapter Reading range 20 mtr ARM7 core processor Features: Operates in the UHF band with support for ISO 18000‑6B and ISO 18000‑6C (EPC GEN2) protocols and >20 m identification distance. Integrated 9 dBi linear polarized antenna with adjustable RF output power from 0–33 dBm for flexible field tuning. Multiple working modes including active, response, and passive modes to suit different automation scenarios. Rich interface options: standard RS485 and Wiegand 26/34, with optional RJ45, Wi‑Fi, and GPRS connectivity. Industrial design with IP66 protection, −20°C to +70°C operating temperature range, <12 W power consumption, and SDK (DLL + demo source) for secondary development.

Phone:+91 7095 49 5929
Email:ranjith@smarteyetechnologies.in

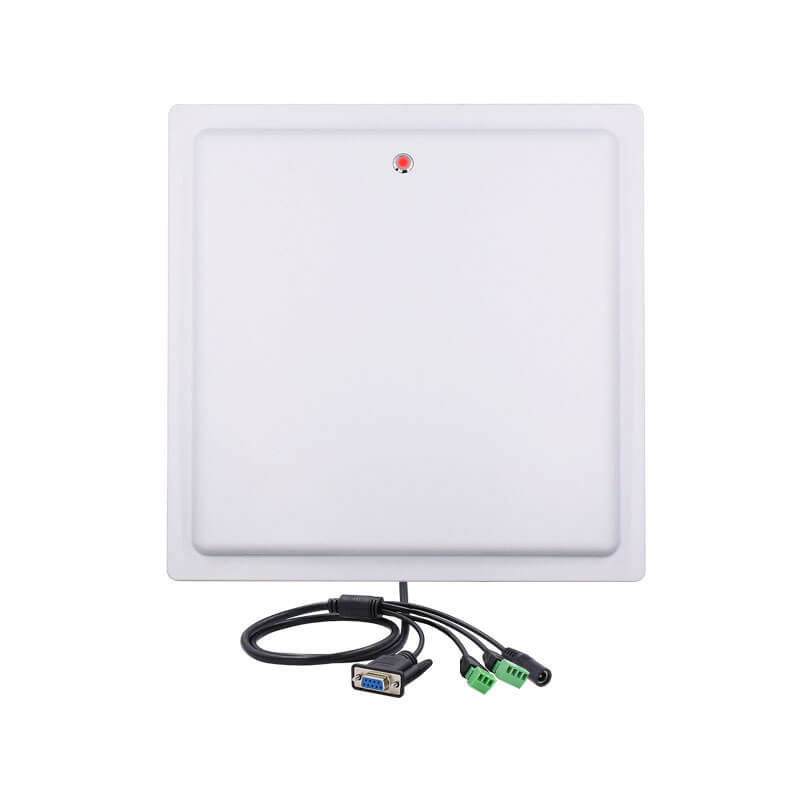

CR32/CR32L/CR32N/CR33/CR33L

MORX UHF

CR32/CR32L/CR32N/CR33/CR33L

MORX UHF

CR32/CR33L is a UHF integrated RFID reader designed for medium‑range fixed installations in access control, logistics, and industrial automation. Provides stable 8–10 m read performance with a 9 dBi circular antenna and optimized RF design for portal and gate applications. Supports intelligent features like password and mask modes to enhance data security and tag filtering in enterprise environments. Designed for networked deployments with automatic scanning and connection of communication ports, simplifying installation and maintenance. Suitable for scenarios where reliable, continuous tag reading and remote monitoring are required over IP networks.

Phone:+91 7095 49 5929
Email:ranjith@smarteyetechnologies.in

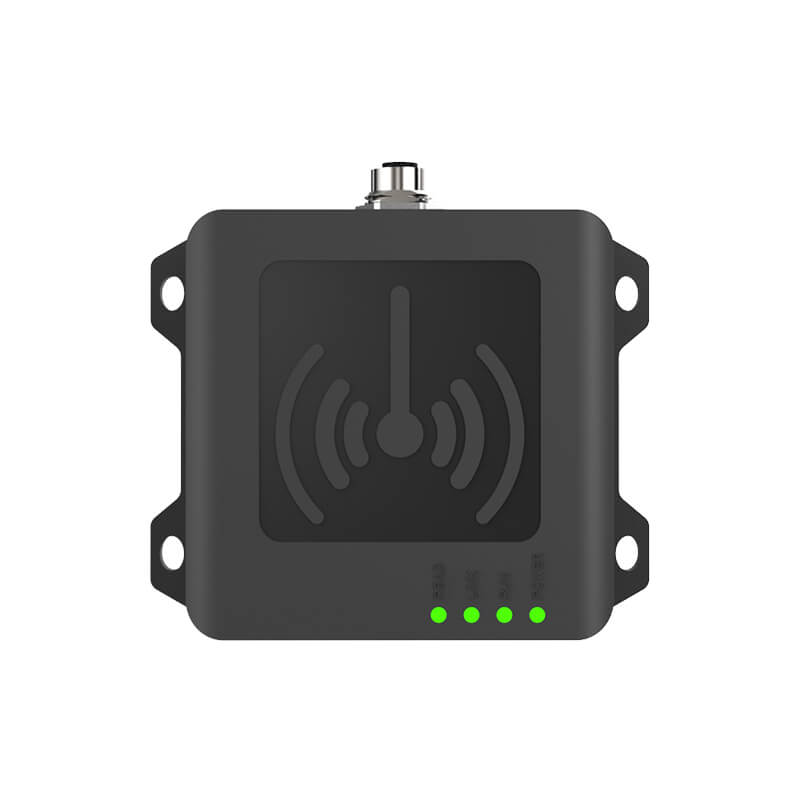

MORX UHF Industrial Reader

MORX UHF

MORX UHF Industrial Reader

MORX UHF

UHF Industrial Grade Reader Communication Interface:RS232/RS485/RJ45/POE (optional) Reading distance: 0~2m (related to card reader parameter configuration and tag type) GPIO: 2 sets of trigger signal input, 2 sets of relay signal output

Phone:+91 7095 49 5929
Email:ranjith@smarteyetechnologies.in

MORX CC04 Four Port Fixed Reader

MORX UHF

MORX CC04 Four Port Fixed Reader

MORX UHF

Four Port Fixed Reader Impinj E710 chip engine Max inventory speed 800 tags/s Support multiple c#, java, vc language for development Communication : USB, RS232, TCP/IP, GPIO Operating Voltage DC 12V/2A power adapter

Phone:+91 7095 49 5929
Email:ranjith@smarteyetechnologies.in

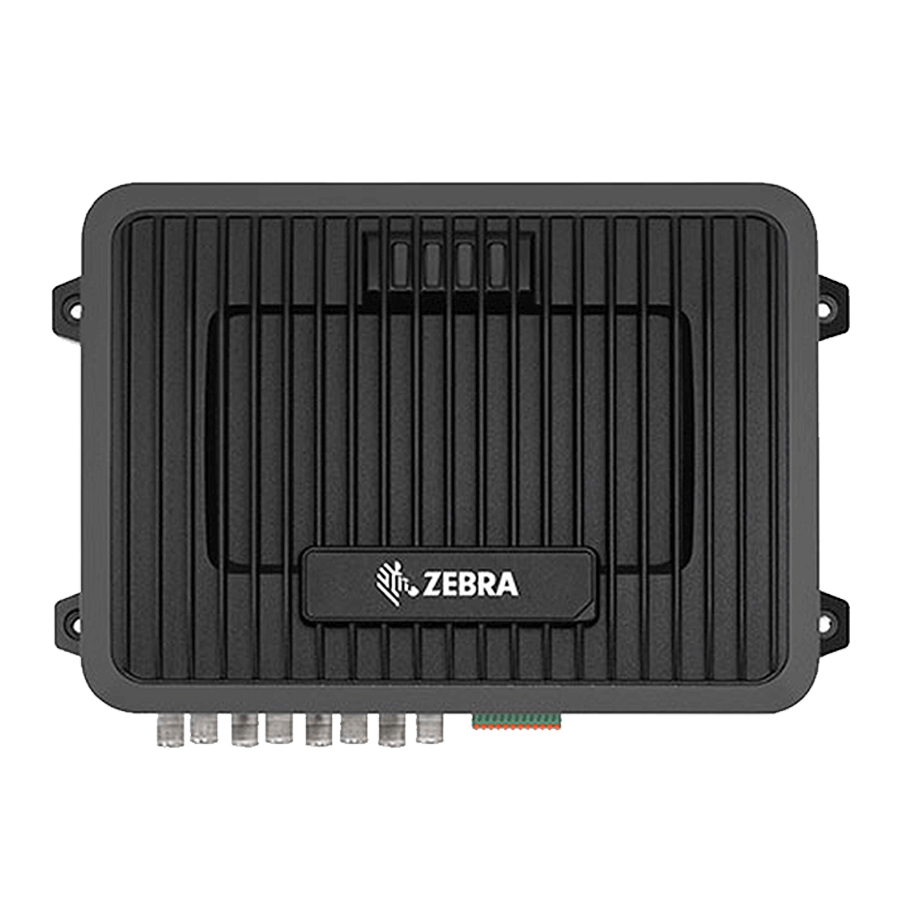

Zebra FX 9600

MORX UHF

Zebra FX 9600

MORX UHF

Four port fixed reader, Processor Texas Instruments AM3505 (600 MHz)

Phone:+91 7095 49 5929
Email:ranjith@smarteyetechnologies.in

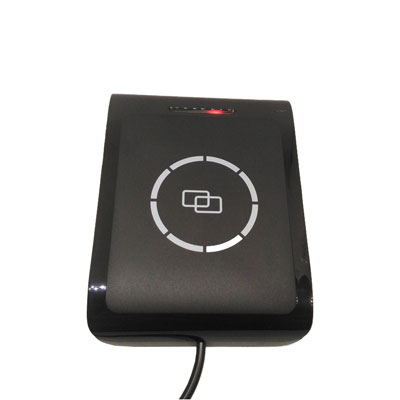

MORX WD01

MORX UHF

MORX WD01

MORX UHF

UHF – Desktop USB Reader / Writer UHF Desktop Reader/ Writer, Interface, USB – Keyboard emulator / HID/ USB CDC (Visual Serial Port), With the function as USB Interface, For Windows, iOS, Android, Linux

Phone:+91 7095 49 5929
Email:ranjith@smarteyetechnologies.in

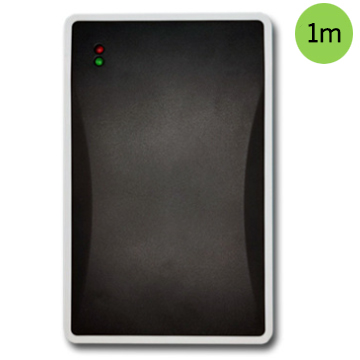

MORX CR01

MORX UHF

MORX CR01

MORX UHF

1 meter UHF RFID Reader UHF Reader with 1 MTR, Reading distance 1 meters Communication interface Wiegand 26 /Wiegand 34, RS232/RS485 Working mode Always read(Default) /Trigger read I/O Interface Supports external trigger

Phone:+91 7095 49 5929
Email:ranjith@smarteyetechnologies.in

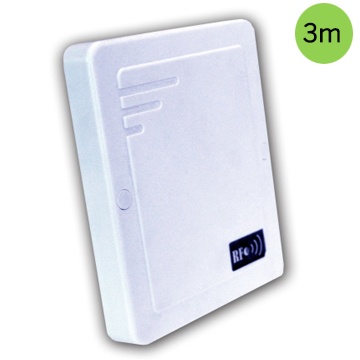

MORX CR03

MORX UHF

MORX CR03

MORX UHF

Reading distance 3 meters Support interface Standard RS232, RS485, WG26/ WG34, RJ45, WIFl Working Automatic mode, trigger mode, interactive mode Antenna parameters 8dBi circularly polarized antenna (built-in)

Phone:+91 7095 49 5929
Email:ranjith@smarteyetechnologies.in

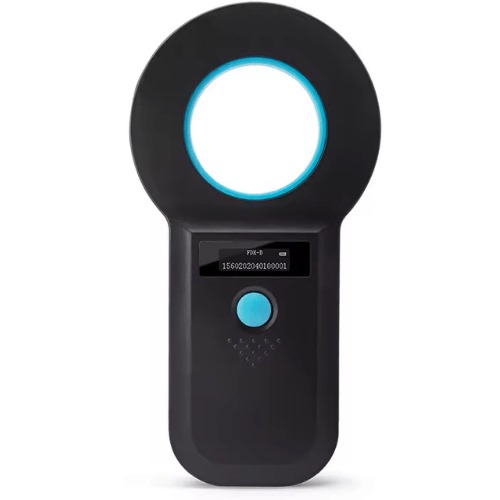

MORX Bluetooth Reader

MORX UHF

MORX Bluetooth Reader

MORX UHF

UHF RFID Bluetooth Handheld Scanner Communication: Bluetooth UHF frequency: 865~868MHz (EU),902~928MHz(US) Protocol: ISO18000-6C EPC GEN2） Reading distance: 0~35cm

Phone:+91 7095 49 5929
Email:ranjith@smarteyetechnologies.in

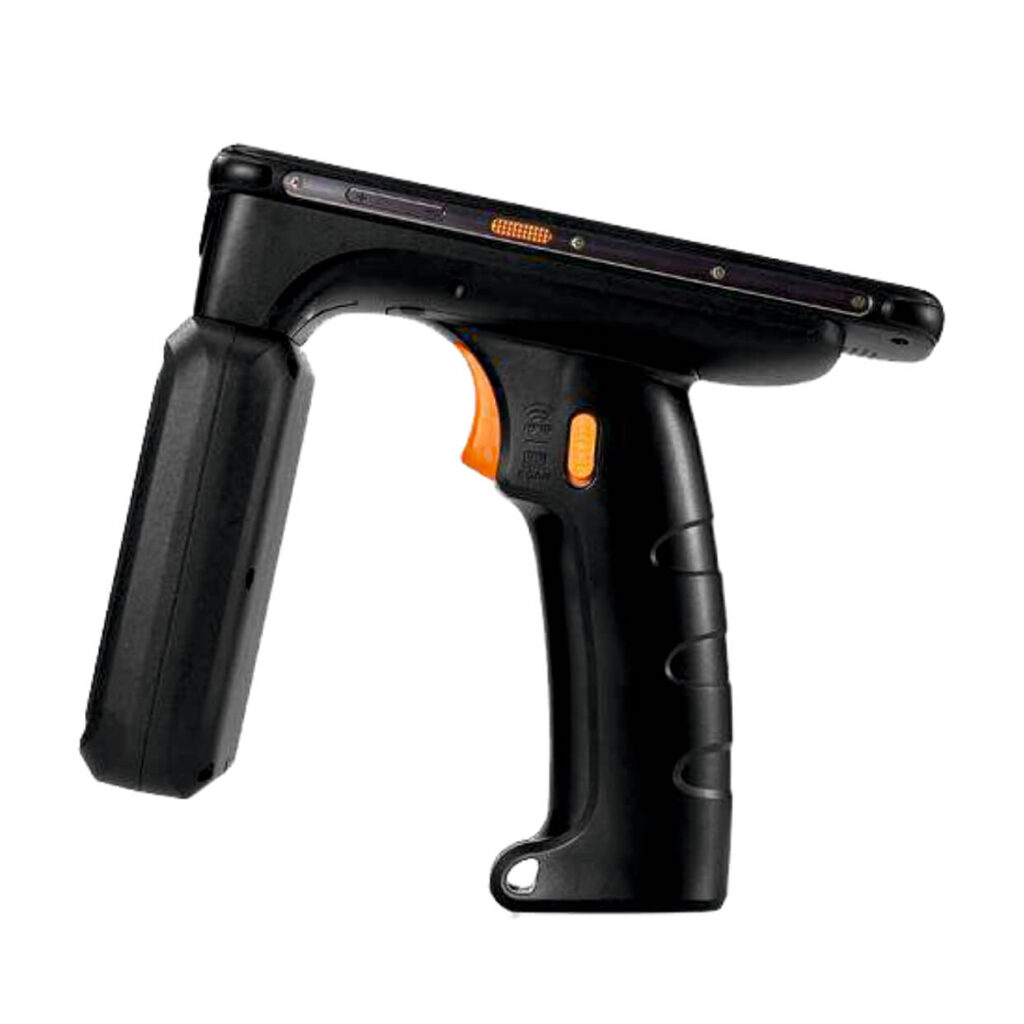

MPower200

MORX UHF

MPower200

MORX UHF

UHF Handheld Reader UHF Handheld M power 200 is a high performance RFID Reader with Inbuilt E710 Impinj Chipset. It has a long lasting 10,000 mAH battery for Exceptional performance. Reading range upto 25m MTK Processor with 2.0 GHz Octo Core CPU Android 12.0 OS with 4G High Speed network

Phone:+91 7095 49 5929
Email:ranjith@smarteyetechnologies.in

MORX Narrow Beam Antenna

MORX UHF

MORX Narrow Beam Antenna

MORX UHF

Narrow Beam Antenna for Access Control Gate Antenna GPRS-based station, wireless designed. 2.4G Directional Reader(indoor use) Support Bluetooth for mobile devices App connect and testing. Max reading range 5m (factory default). Widely used in school bus and building entrance site.

Phone:+91 7095 49 5929
Email:ranjith@smarteyetechnologies.in

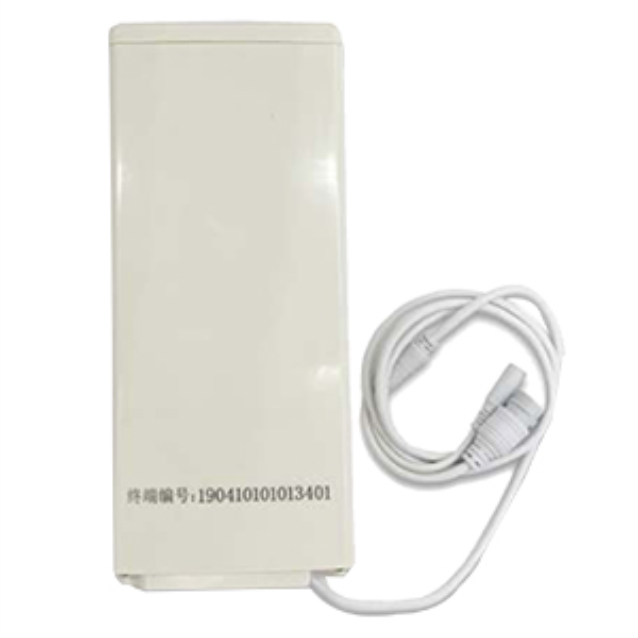

MORX-ARM104G

MORX UHF

MORX-ARM104G

MORX UHF

Long Range Active RFID Reader Dual-polarized directional antenna for directional reading up to 400 meters. The four antennas correspond to four directions, determine the orientation of the RFID tags. Power failure alarm. Built-in power failure buffer power supply can report power failure information in time. Device management such as parameter configuration and remote upgrade via TCP/IP and GPRS. Long Range Active RFID reader Bluetooth BLE4.0 wireless connection for device parameter configuration. High reliability: rainproof, lightning protection, against typhoon.

Phone:+91 7095 49 5929
Email:ranjith@smarteyetechnologies.in

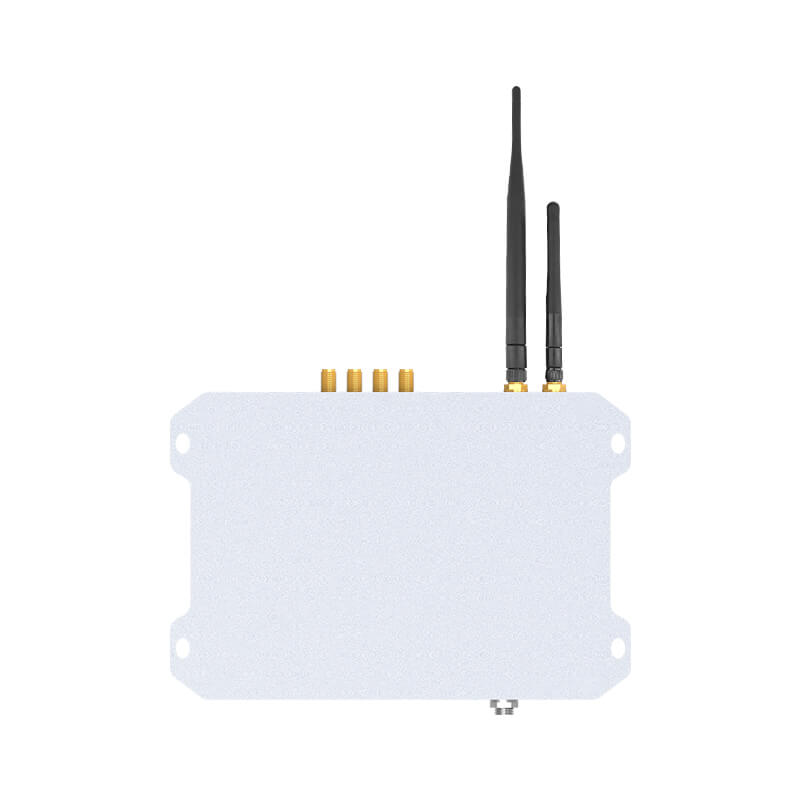

MORX Android 8 Port Fixed Reader

MORX UHF

MORX Android 8 Port Fixed Reader

MORX UHF

UHF Reader with inbuilt Door Controller for 10,000 users Memory: 2+16GB Operating system: Android 12 Antenna port: 8 SMA-K female headers Communication: RJ45, 2 USB3.0 Type A, support USB Host (One Supports OTG), RS232/ RS485

Phone:+91 7095 49 5929
Email:ranjith@smarteyetechnologies.in

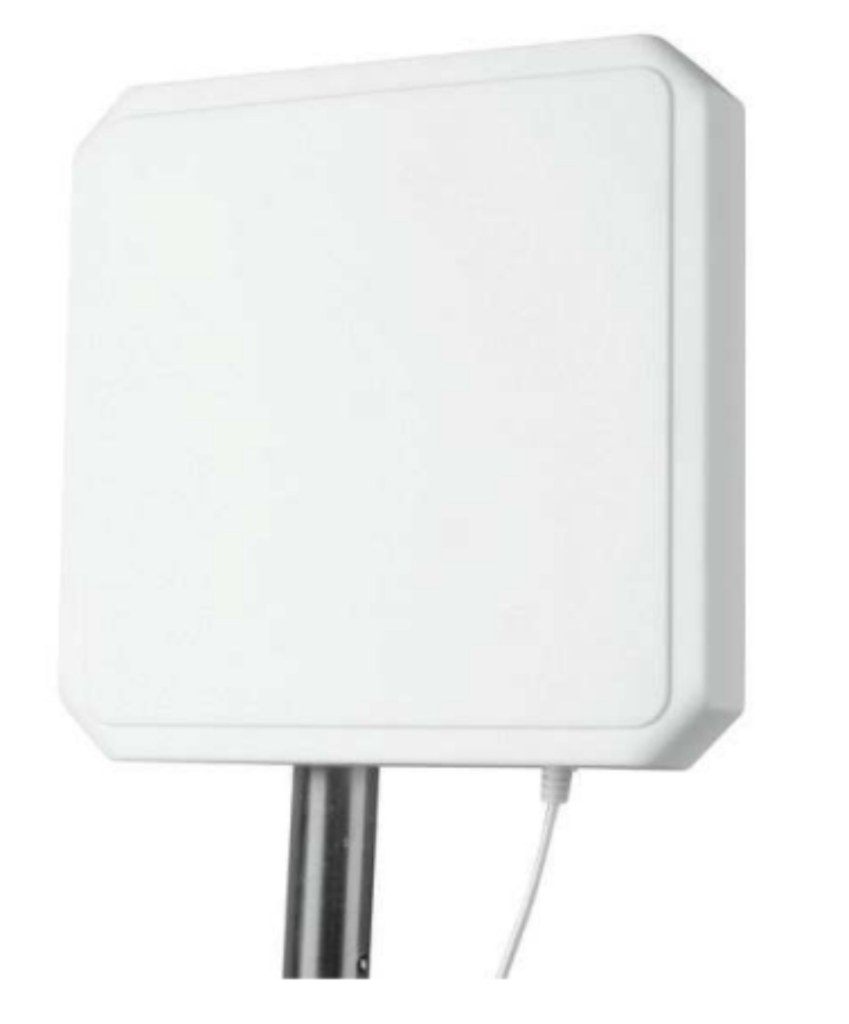

MORX 9Dbi Circular Antenna

MORX UHF

MORX 9Dbi Circular Antenna

MORX UHF

9dBi RFID Antenna with ultra high-frequency (UHF) of 902-928Mhz. The design of circular polarization makes the antenna can read horizontal tag or vertical tag. it is good in appearance, environmental adaptability, easy installation. It is used for terminals, parking lots, shopping malls, toll station, Warehouse management, inventory counting, meeting sign-in.

Phone:+91 7095 49 5929
Email:ranjith@smarteyetechnologies.in

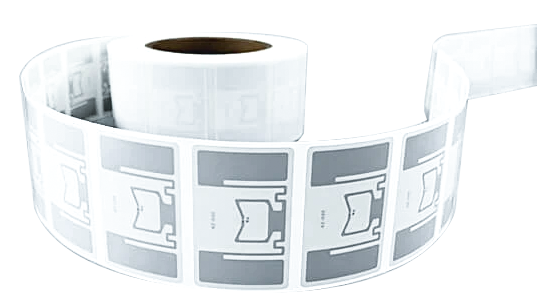

MORX 54*33

MORX UHF

MORX 54*33

MORX UHF

The ARC-certiﬁed RFID label is available to Walmart merchants for recording apparel and other item-level retail information, supply management and brand protection against counterfeiting. The RFID chip is embedded in the label and the data inside the chip is detected by the RFID reader and transmitted to the system for control of the required information. In addition, the RFID label can be used for EPC Class1 Gen2 and ISO/IEC 18000-6C international standard protocols.

Phone:+91 7095 49 5929
Email:ranjith@smarteyetechnologies.in

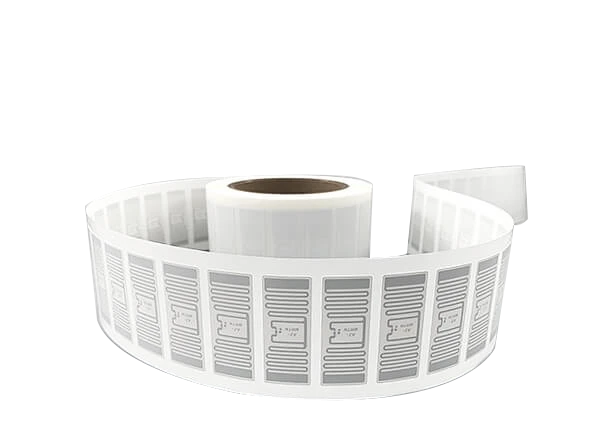

MORX 44*18

MORX UHF

MORX 44*18

MORX UHF

This ARC certiﬁed RFID label can be used in clothing retail, supply chain management and brand protection. They not only fully conform to the ISO/IEC 18000-6C and EPC Global Gen2v2 standards, but their inlays have also completely passed the ARC certification standards tests.

Phone:+91 7095 49 5929
Email:ranjith@smarteyetechnologies.in

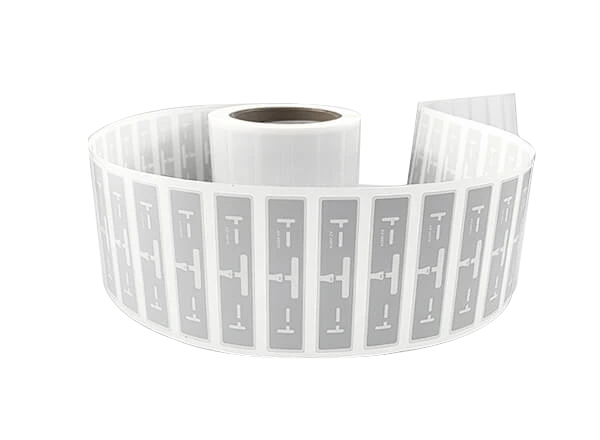

MORX 74*18

MORX UHF

MORX 74*18

MORX UHF

This ARC certiﬁed RFID label can be used in clothing retail, supply chain management and brand protection. They not only fully conform to the ISO/IEC 18000-6C and EPC Gen2 standards, but their inlays have also completely passed the ARC certiﬁcation standards tests.

Phone:+91 7095 49 5929
Email:ranjith@smarteyetechnologies.in

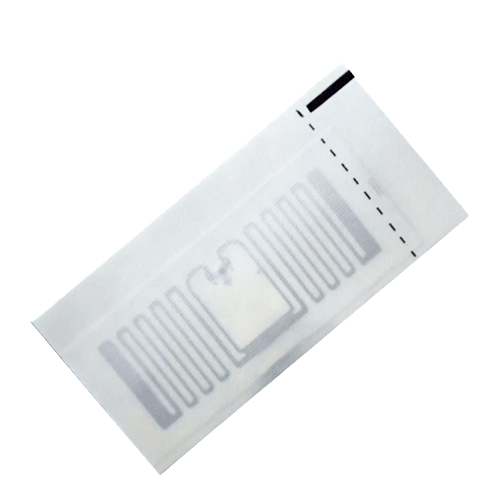

Taffeta Tag

MORX UHF

Taffeta Tag

MORX UHF

Nylon Taffeta UHF RFID Tag Garment Label H9 R6 Chip Retail Apparel Management
